ZS1000-B
5-IN-1 MINI OTDR
The Signal Fire ZS1000-B OTDR is a compact, handheld optical tester designed for fast and accurate fiber diagnostics. It combines five essential functions in one device: OTDR, optical power meter, stable light source, VFL (red light source), and an LED flashlight. It supports live testing. With a test range from 100m to 80km, an attenuation dead zone of 12m, and an event dead zone of less than 3m, it delivers precise measurements for fault location, fiber length, and loss analysis. Its one-click auto test function makes it easy to operate, even for beginners. The device supports 8000 sampling points and features a USB-C port and intelligent OTDR simulation software for detailed event visualization. Ideal for field technicians handling maintenance, construction, or small-scale fiber projects.
Professional in fast rapair
An ZS1000-B OTDR helps quickly find where a fiber signal problem is. It shows the exact point of loss or break and makes it easy to locate which splicing box has the issue. This saves a lot of time and avoids checking every connection manually.

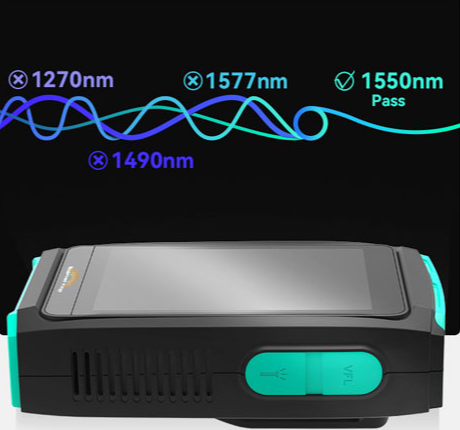

Support live test
Even with live test, it will not caise damage to the optical components and strictly protect its own precision part.

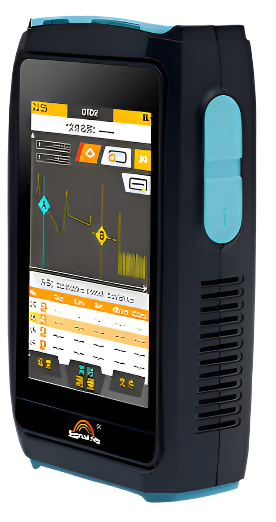

Compact designe
Mini and cmpact, comprehensive and powerful

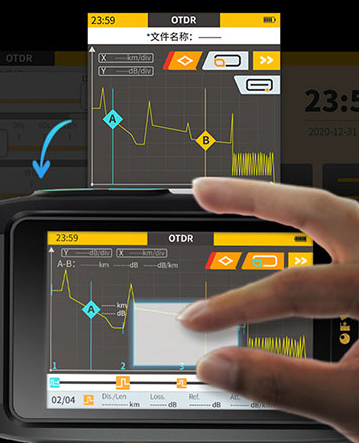

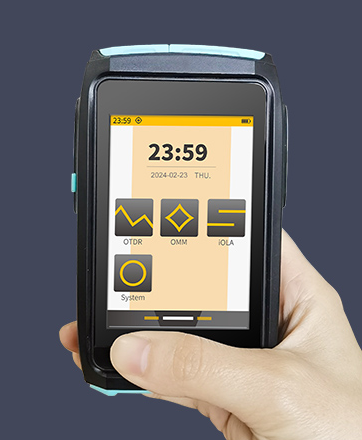

Advance GUI
3.5inch-definition multi-touch screen

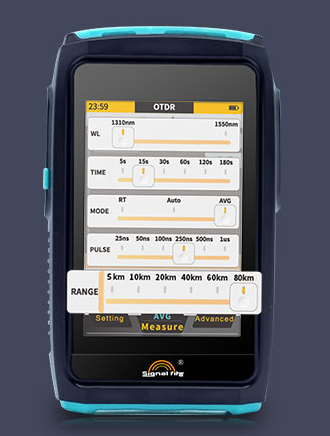

Advanced settings
Set different settings
| Parameter | Value |
|---|---|
| Dynamic Range | 20 dB |
| Test Range | 100 m ~ 80 km |
| Wavelength | 1550/(±20nm）single wave |
| OTDR/OLS Connector | SC |
| Pulse Width | 5 ns ~ 20 µs |
| Measurement Time | 5 s ~ 180 s |
| Measurement Mode | Real-time, Average, Automatic |
| Attenuation Dead Zone | 12 m |
| Event Dead Zone | < 3 m |
| Sampling Points | 8000 |
| Input Light Detection | Supported |
| Max Input Power (ZS1000-B only) | 1277/1310/1490/1577 nm < 10 dBm |
| iOLA Function | Only ZS1000-A supports |
| OPM Power Range | -50 ~ 26 dBm |
| OPM Response Wavelength | 700 ~ 1700 nm |
| OPM Calibration Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 nm |
| OPM Power Uncertainty | ±0.2 dB |
| VFL Output Power | 10 mW |
| Display | 3.5-inch high-definition touchscreen |
| Charging Port | Type-C |
| Self-Calibration | Supported |
| LED Flashlight | Supported |
| External Storage | USB (Temporary) |
| Working Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | < 90% |
| Size (H×W×D) | 117 mm × 70 mm × 33 mm |
| Weight | About 217 g |
